Product Introduction

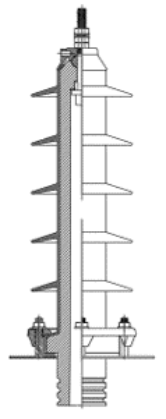

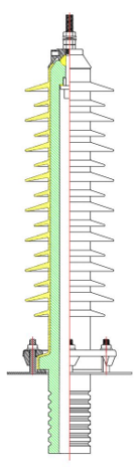

New composite insulating bushing for outdoor oil-insulated transformers with an epoxy resin core ensures good mechanical performance and excellent insulation level. The outer insulation is made of high-quality liquid silicone rubber molded in the core, ensuring excellent resistance to atmospheric degradation (sandstorms, ultraviolet radiation, saltwsalt environments, industrial pollution......) Degradation performance. The bushing is equipped with aluminium flanges for fixing to four M10 bolts of the transformer. The electric field inside the insulator is controlled by a metal shield. The product is fully designed in accordance with the EN50180 standard and can fully replace the porcelain insulating bushings specified accordingly.
