Cold Shrink 15kV Outdoor Terminal

Product Introduction:

Cold shrink outdoor terminal is mainly suitable for terminal installation of single-core and three-core cables, and is often used for outdoor connections between cables and overhead lines. It is widely used in power, chemical, railway, airport, port and other fields.

Applicable voltage levels: 6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV


暂无内容
暂无内容
Product description

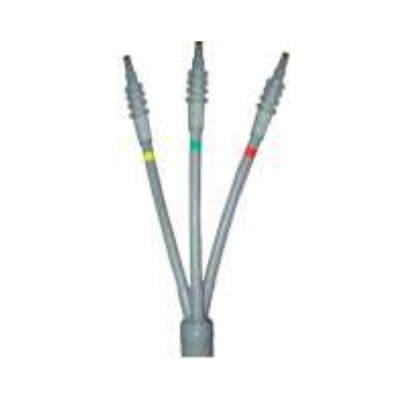

Product Image:

 15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal1998.png15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal2000.png

Technical Parameters:



Item

Parameters

Voltage Rating

15kV

Power Frequency Withstand Voltage (AC) 5min

39kV

DC Withstand Voltage (DC) 15min

35kV

Rain Test Withstand Voltage (AC) 1min

35kV

Salt Fog Test

11kV, 1000h

Partial Discharge

15kV, ≤10pC

Lightning Impulse Withstand Voltage

95kV

Applicable Cable Cross-section Area

25～400mm²

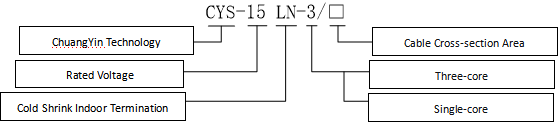

Product Model Description:

15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal2359.png

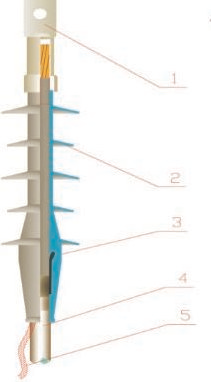

Product Structure:

15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal2412.png



1. Cable Lug

2. Terminal Skirt

3. Stress Cones

4. Cable

5. Grounding Copper Strip

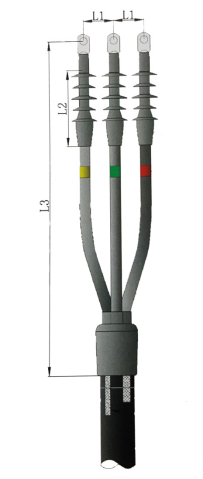

15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal2510.png

L1

L2

L3

≥200mm

270mm

900±300mm

L3 can be adjusted appropriately according to the on-site construction environment. Adjust the length of the insulation pipe accordingly





Standard Packaging:



1. Indoor Termination

2. Protective Tube / Three-finger Core Separator

3. Sealing Tube

4. Insulating Tube

5. Constant Force Spring

6. Grounding Copper Strip

7. Semi-conductive Tape

8. Insulating Self-amalgamating Tape

9. Filling Compound

10. Sealing Compound

11. Silicone Grease

12. Cleaning Wipes

13. Installation Gauge

14. Installation Instructions

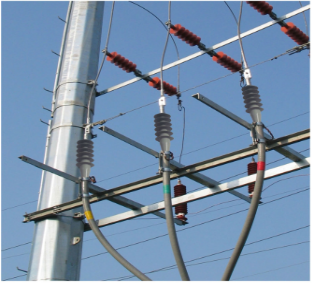

Product Application Examples:

 15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal3123.png

Cold Shrink 15kV Outdoor Terminal

Product Introduction:

Cold shrink outdoor terminal is mainly suitable for terminal installation of single-core and three-core cables, and is often used for outdoor connections between cables and overhead lines. It is widely used in power, chemical, railway, airport, port and other fields.

Applicable voltage levels: 6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV


Product Image:

 15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal1998.png15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal2000.png

Technical Parameters:



Item

Parameters

Voltage Rating

15kV

Power Frequency Withstand Voltage (AC) 5min

39kV

DC Withstand Voltage (DC) 15min

35kV

Rain Test Withstand Voltage (AC) 1min

35kV

Salt Fog Test

11kV, 1000h

Partial Discharge

15kV, ≤10pC

Lightning Impulse Withstand Voltage

95kV

Applicable Cable Cross-section Area

25～400mm²


Product Model Description:

15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal2359.png



Product Structure:

15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal2412.png



1. Cable Lug

2. Terminal Skirt

3. Stress Cones

4. Cable

5. Grounding Copper Strip


15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal2510.png

L1

L2

L3

≥200mm

270mm

900±300mm

L3 can be adjusted appropriately according to the on-site construction environment. Adjust the length of the insulation pipe accordingly





Standard Packaging:



1. Indoor Termination

2. Protective Tube / Three-finger Core Separator

3. Sealing Tube

4. Insulating Tube

5. Constant Force Spring

6. Grounding Copper Strip

7. Semi-conductive Tape

8. Insulating Self-amalgamating Tape

9. Filling Compound

10. Sealing Compound

11. Silicone Grease

12. Cleaning Wipes

13. Installation Gauge

14. Installation Instructions


Product Application Examples:

 15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal3123.png
