Cold Shrink 15kV Indoor Terminal

Product Introduction:

Cold shrink indoor terminal is mainly used for terminal installation of single-core and three-core cables, and is often used for indoor connection of cables with distribution equipment such as switch cabinets and box-type transformers. It is widely used in power, chemical, railway, airport, port and other fields.

Applicable voltage levels: 6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV


暂无内容
暂无内容
Product description



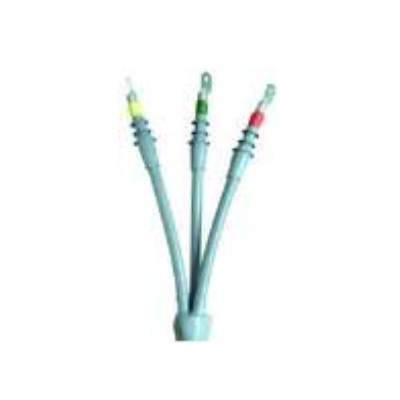

Product Image:

15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal461.png15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal464.png


Technical Parameters:

Item

Parameter

Voltage Rating

15kV

Power Frequency Withstand Voltage (AC) 5min

39kV

DC Withstand Voltage (DC) 15min

35kV

Damp Heat Test

11kV, 300h

Partial Discharge

15kV, ≤10pC

Lightning Impulse Withstand Voltage

95kV

Applicable Cable Cross-section Area

25～400mm²



Product Model Description:


15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal805.png




Product Structure:

15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal832.png




1. Cable Lug

2. Terminal Skirt

3. Stress Cones

4. Cable

5. Grounding Copper Strip

 15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal930.png



L1

L2

L3

≥200mm

170mm

900±300mm

L3 can be appropriately adjusted according to the on-site construction environment. Just adjust the length of the insulating pipe accordingly


Standard Packaging:

1. Indoor Termination

2. Protective Tube / Three-finger Core Separator

3. Sealing Tube

4. Insulating Tube

5. Constant Force Spring

6. Grounding Copper Strip

7. Semi-conductive Tape

8. Insulating Self-amalgamating Tape

9. Filling Compound

10. Sealing Compound

11. Silicone Grease

12. Cleaning Wipes

13. Installation Gauge

14. Installation Instructions

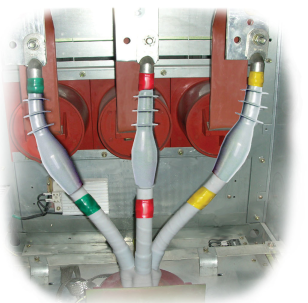

Product Application Example



 15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal1549.png




Cold Shrink 15kV Indoor Terminal

Product Introduction:

Cold shrink indoor terminal is mainly used for terminal installation of single-core and three-core cables, and is often used for indoor connection of cables with distribution equipment such as switch cabinets and box-type transformers. It is widely used in power, chemical, railway, airport, port and other fields.

Applicable voltage levels: 6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV



Product Image:

15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal461.png15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal464.png


Technical Parameters:

Item

Parameter

Voltage Rating

15kV

Power Frequency Withstand Voltage (AC) 5min

39kV

DC Withstand Voltage (DC) 15min

35kV

Damp Heat Test

11kV, 300h

Partial Discharge

15kV, ≤10pC

Lightning Impulse Withstand Voltage

95kV

Applicable Cable Cross-section Area

25～400mm²



Product Model Description:


15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal805.png




Product Structure:

15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal832.png




1. Cable Lug

2. Terminal Skirt

3. Stress Cones

4. Cable

5. Grounding Copper Strip

 15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal930.png



L1

L2

L3

≥200mm

170mm

900±300mm

L3 can be appropriately adjusted according to the on-site construction environment. Just adjust the length of the insulating pipe accordingly


Standard Packaging:

1. Indoor Termination

2. Protective Tube / Three-finger Core Separator

3. Sealing Tube

4. Insulating Tube

5. Constant Force Spring

6. Grounding Copper Strip

7. Semi-conductive Tape

8. Insulating Self-amalgamating Tape

9. Filling Compound

10. Sealing Compound

11. Silicone Grease

12. Cleaning Wipes

13. Installation Gauge

14. Installation Instructions


Product Application Example



 15KV冷缩户内(外)终端-EN- 15kV Cold Shrink Terminal1549.png
