40.5kV Switch Cabinet Testing Tool

Product Introduction

Switch cabinet testing tools are suitable for gas-filled ring main units at 35kV and below voltage levels for test withstand voltage detection of C-type bushings. Product performance meets the requirements of GB/T12706.4 and IEC60502 standards.

Product Features

1. Made of imported liquid silicone rubber or EPDM rubber material, it has good elasticity, excellent electrical insulation and weather resistance, and is non-flame-spreading and self-extinguishing.

2. Easy to install and reuse.

3. Each product undergoes insulation withstand voltage and partial discharge tests before leaving the factory, ensuring the reliability of the product weight.


暂无内容
暂无内容
Product description

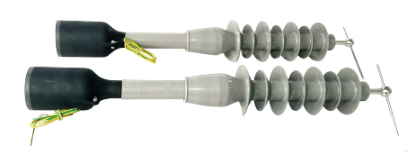

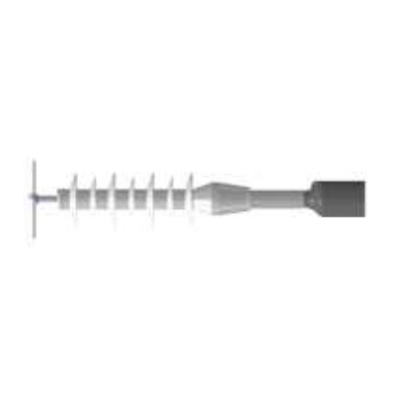

Product Pictures


开关柜测试工装-EN- 40.5kV Switch Cabinet Testing Tool723.png

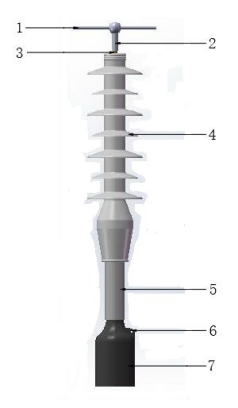

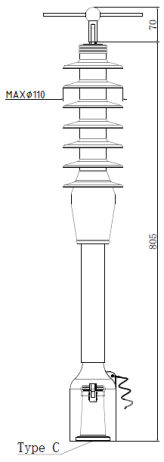

Product structure design

1. Installation tools

2. Equalizing cap

3. Conductive rod assembly

4. Outdoor terminal

5. Protective sleeve

6. Grounding hole

7. Insulation layer

 开关柜测试工装-EN- 40.5kV Switch Cabinet Testing Tool725.png开关柜测试工装-EN- 40.5kV Switch Cabinet Testing Tool726.png

Order information

Product Model

Voltage level (kV)

Rated

Current (A)

Minimum creep distance

Corresponding number

CYS - E (C) - KGCSZG - 40.5 kV

18/30 (36)

21/35 (40.5)

26/35 (40.5)

630

1100mm

1 #



Ordering Instructions

♦ Install strictly in accordance with the installation instructions provided.

♦ Product installation must be carried out by professional installers.



Electrical performance

Testing items

Testing standards

Rated voltage

35kV

Power frequency withstand voltage (AC)

117kV/5min

Partial discharge

45kV, ≤10pC

Impulse voltage (10 times for each polarity)

200kV

Note: This product meets IEC60502.4 and GB/T 12706.4 requirements.

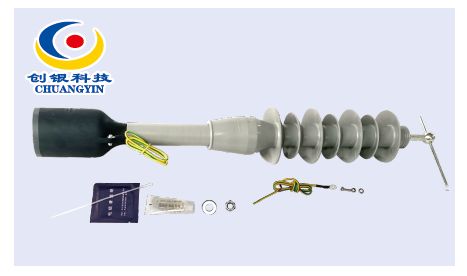

Kit

Name

Quantity

Notes

Test tooling

1


Yellow-green line

1

Install on the tooling

Installation tools

1


Cleaning paper

3 packs


Silicone grease

1 stick


Installation instructions and certificate of conformity

1 copy

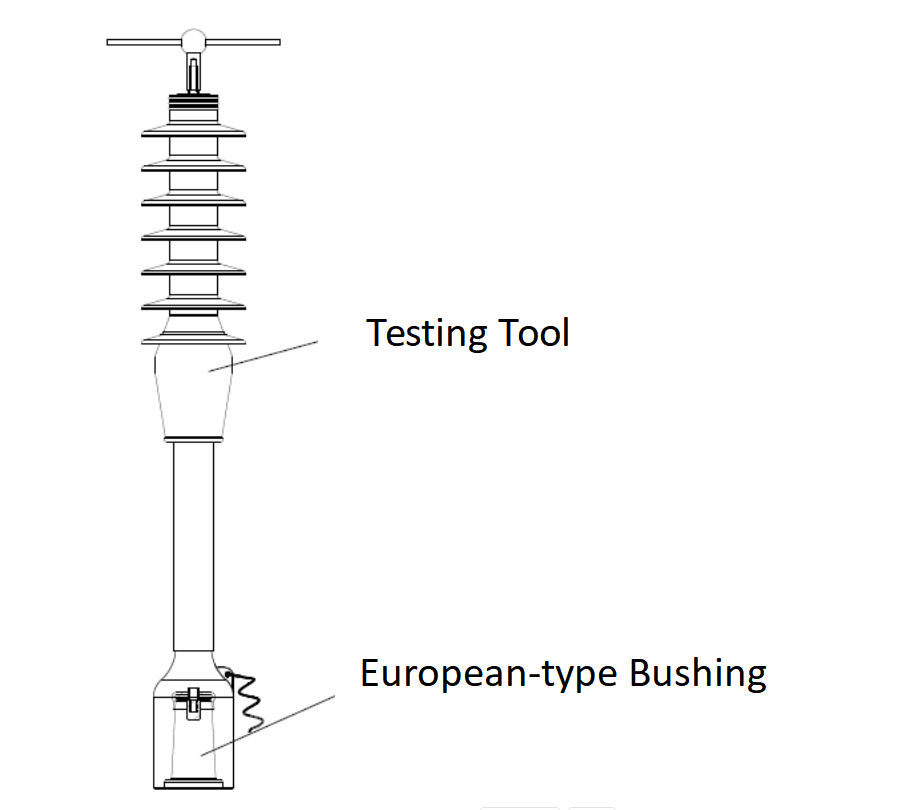

Product Assembly Diagram


开关柜测试工装-EN- 40.5kV Switch Cabinet Testing Tool1825.png
