European-style 36kV rear-mounted surge arrester

European-style 36kV rear-mounted surge arrester

Product Introduction:

European 36kV short front (rear) plug-in lightning arresters belong to the European 36kV short plug series. The rear plug arrester is connected to the front plug or an additional rear plug to provide overvoltage protection for electrical equipment.

The valve plate inside the surge arrester built into the plug has good nonlinearity, which gives the surge arrester low residual voltage, large current-carrying capacity, fast response time, flat steep wave, effective protection against lightning strikes, operational shock and overvoltage, ensuring the safe operation of power transmission and transformation equipment.


暂无内容
暂无内容
Product description

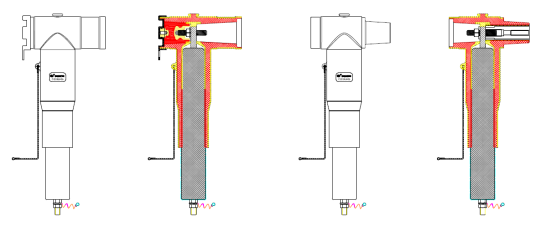

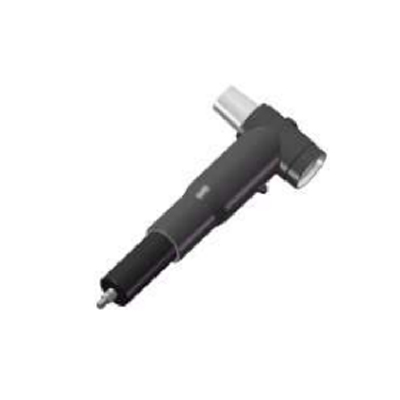

Product Image:

欧式36KV短款插头-EN- European 36kV Short Plug3315.png

36kV short front plug lightning arrester 36kV short rear plug lightning arrester

Technical Parameters:

Project

30/80.4 YH10WZ -

36/96.4 YH10WZ -

37.5/97.7 YH10WZ -

41.3/107.5 YH10WZ -

YH10WZ-45/118

Nominal voltage (kV)

36

36

36

36

36

Rated voltage (kV

30

36

37.5

41.3

45

Continuous operating voltage (kV)

24

28.8

30

33

36

Nominal discharge current (kA)

10

10

10

10

10

Dc 1mA reference voltage (kV)

≥42

≥51

≥53

≥58

≥64

Leakage current (μA) at 0.75UDC1mA

≤50

≤50

≤50

≤50

≤50

Steep impulse current residual voltage (kV)

≤82.5

≤110.9

≤112.4

≤123.6

≤135.7

Lightning impulse current residual voltage (kV)

≤80.4

≤96.4

≤97.7

≤107.5

≤118

Operating impulse current residual voltage (kV)

≤68.3

≤81.9

≤83.1

≤81.4

≤100.3

2mS square wave impulse current endurance (A)

400

400

400

400

400

High current impulse withstand (kA)

100

100

100

100

100

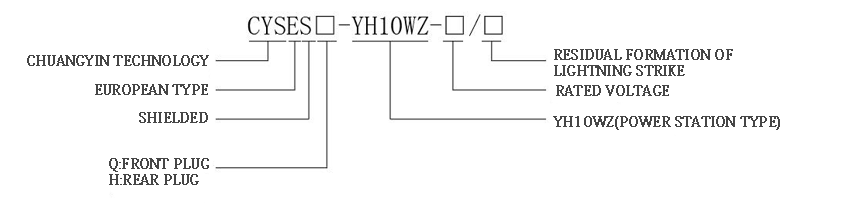

Product model description:

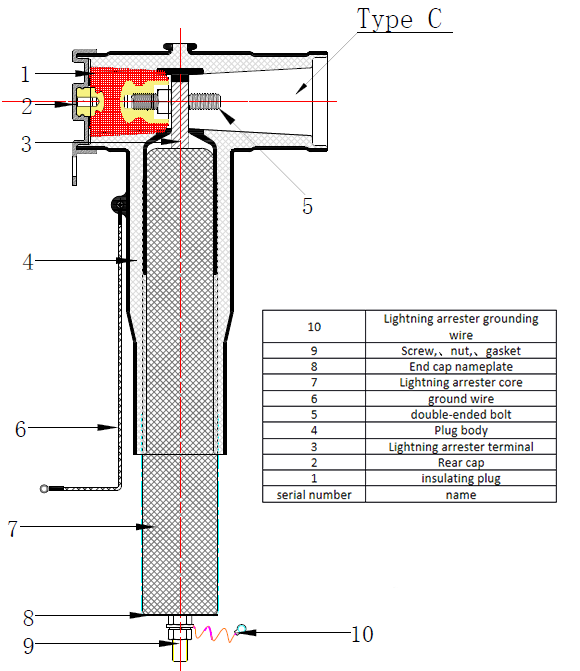

Front-insertion lightning arrester product structure:


Standard Packaging:



1. Front plug

2. Insulating plug

3. Back cap

4. Double-ended bolts

5. Mounting wrench

6. Silicone grease

7. Cleaning paper

8. Exhaust strip

9. Installation instructions

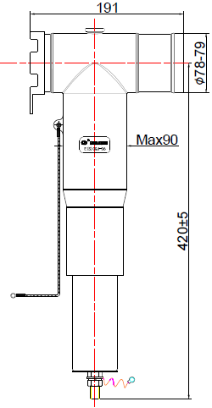

Product Dimensions:

欧式36KV短款插头-EN- European 36kV Short Plug4509.png

Rear-plug Lightning Arrester product structure:


Standard packaging:

1. Rear plug lightning arrester

2. Connecting rod

3. Double-ended bolts

4. Mounting wrench

5. Silicone grease

6. Cleaning paper

7. Exhaust strip

8. Installation Instructions



Product dimensions:

 欧式36KV短款插头-EN- European 36kV Short Plug4822.png
