European 36kV short rear plug

Product Description:

European 36kV short rear plug connected to the front plug or another rear plug provides an extended electrical connection circuit (branch). It cannot be directly connected to the bushing. The tail can be blocked with an insulating plug or extended to connect to another rear plug or rear plug arrester.

Applicable cable cross-sectional area :50-500mm2.

Applicable voltage level: 18/30 (36) kV


暂无内容
暂无内容
Product description

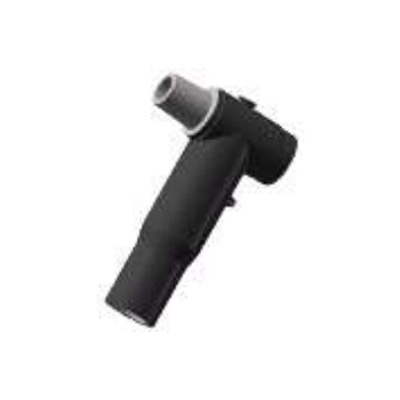

Product Image:

欧式36KV短款插头-EN- European 36kV Short Plug1879.png

Technical Parameters

Project

Parameters

Voltage level

36kV

Power frequency withstand voltage (AC) for 5 minutes

81kV

DC withstand voltage (DC) 15 minutes

72kV

Partial discharge

30kV, ≤10pC

Lightning impulse voltage

170kV

Shielding resistor

5000 or less Ω

Applicable cable cross-sectional area

50 to 500mm


Product model description:

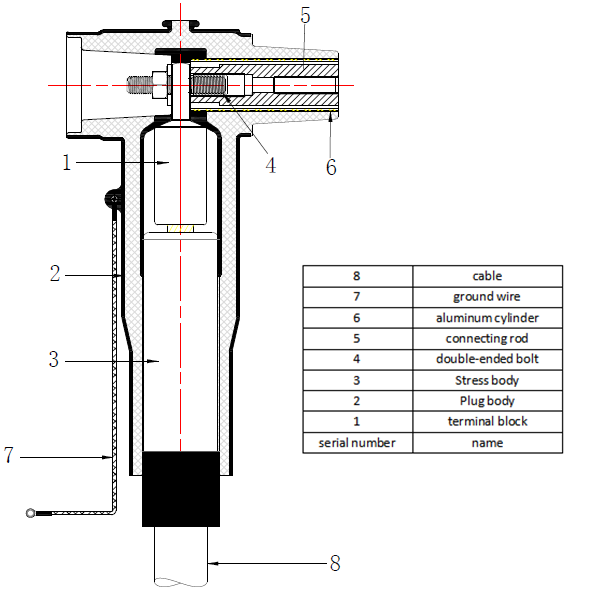

Product Structure:


Standard Packaging:

1. Back plug

2. Terminal blocks

3. Stress body

4. Connecting rods

5. Double-ended bolts

6. Mounting wrench

7. Semiconductive tape

8. PVC tape

9. Sanding strips

10. Silicone grease

11. Cleaning paper

12. Install the ruler

13. Installation Instructions

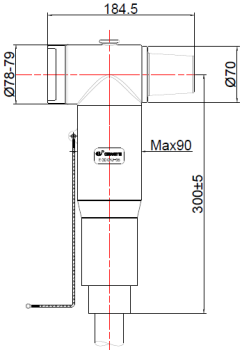

Product Dimensions:

 欧式36KV短款插头-EN- European 36kV Short Plug2563.png







European 36kV short rear plug

Product Description:

European 36kV short rear plug connected to the front plug or another rear plug provides an extended electrical connection circuit (branch). It cannot be directly connected to the bushing. The tail can be blocked with an insulating plug or extended to connect to another rear plug or rear plug arrester.

Applicable cable cross-sectional area :50-500mm2.

Applicable voltage level: 18/30 (36) kV


Product Image:

欧式36KV短款插头-EN- European 36kV Short Plug1879.png

Technical Parameters

Project

Parameters

Voltage level

36kV

Power frequency withstand voltage (AC) for 5 minutes

81kV

DC withstand voltage (DC) 15 minutes

72kV

Partial discharge

30kV, ≤10pC

Lightning impulse voltage

170kV

Shielding resistor

5000 or less Ω

Applicable cable cross-sectional area

50 to 500mm


Product model description:




Product Structure:


Standard Packaging:

1. Back plug

2. Terminal blocks

3. Stress body

4. Connecting rods

5. Double-ended bolts

6. Mounting wrench

7. Semiconductive tape

8. PVC tape

9. Sanding strips

10. Silicone grease

11. Cleaning paper

12. Install the ruler

13. Installation Instructions



Product Dimensions:

 欧式36KV短款插头-EN- European 36kV Short Plug2563.png







Product description
