Product Introduction:
European 36kV short front plug is used for the (cross-linked power cable) incoming and outgoing terminal of ring main unit switchgear, bolted to the incoming and outgoing bushing seat of the switchgear, the through-wall bushing of the cable branch box, and the double-way bushing, and is also applicable to box-type substation equipment. Provide a fully insulated, fully sealed connection of power cables to switchgear or cable branch boxes.
Applicable cable cross-sectional area :50-500mm2.
The product interface complies with the C-type sleeve design in standard EN50180-50181.
Applicable voltage level: 18/30 (36) kV

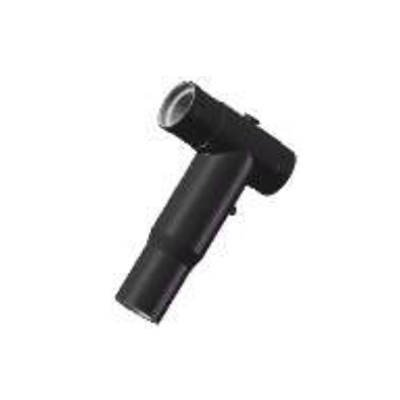

Product Image:
Technical Parameters:
Project | Parameters |
Voltage level | 36kV |
Power frequency withstand voltage (AC) for 5 minutes | 81kV |
DC withstand voltage (DC) 15 minutes | 72kV |
Partial discharge | 30kV, ≤10pC |
Lightning impulse voltage | 170kV |
Shielding resistor | 5000 or less Ω |
Applicable cable cross-sectional area | 50 to 500mm |
Product Model Description:
Product structure:
Standard Packaging:

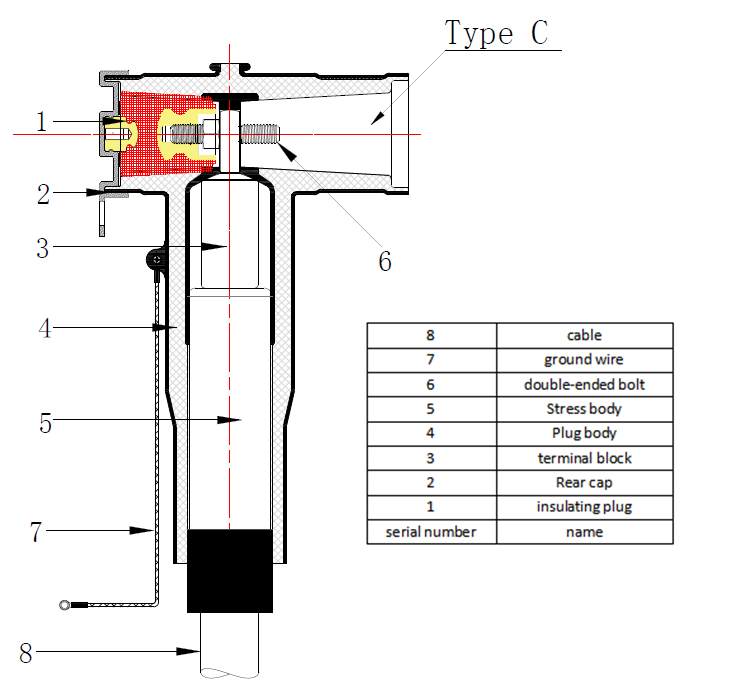

| 1. Front plug | 2. Terminal blocks |
| 3. Stress body | 4. Back cap |
| 5. Insulating plug | 6. Double-ended bolts |
| 7. Mounting wrench | 8. Semiconductive tape |
| 9. PVC tape | 10. Sanding strips |
| 11. Silicone grease | 12. Cleaning paper |
| 13. Install the ruler | 14. Installation instructions |

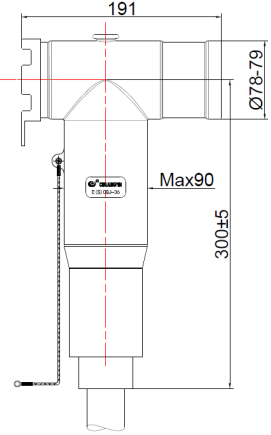

Product Dimensions:
