European 15kV rear plug-in lightning arrester

European 15kV rear plug-in lightning arrester

European 15kV rear plug-in lightning arrester

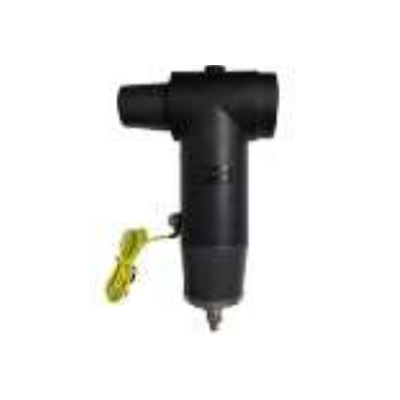

Product Description:

The European 15kV rear plug arrester belongs to the European 630A plug series. Rear-plug lightning arresters are connected to the front plug or an additional rear plug to provide over-voltage protection for electrical equipment.

The valve plate inside the surge arrester built into the plug has good non-linearity, which gives the surge arrester low residual voltage, large current-carrying capacity, fast response time, flat steep wave, effective protection against lightning strikes, operational shock and over-voltage, ensuring the safe operation of power transmission and transformation equipment.




暂无内容
暂无内容
Product description


Product Image:

欧式15KV630A插头-EN- European 15kV 630A Plug3726.png

Technical Parameters:

Project

YH5WZ-

10/27 parameter

YH5WS-

10/30 parameter

YH5WS-

13/36 parameter

YH5WZ-

17/45 parameter

YH5WS-

17/50 parameter

Nominal voltage (kV)

6

6

10

15

15

Rated voltage (kV)

10

10

13

17

17

Continuous operating voltage (kV)

8.0

8.0

10.4

13.6

13.6

Dc 1mA reference voltage (kV)

≥14.4

≥15.0

≥19.3

≥24

≥25

Leakage current (μA) at 0.75UDC1mA

≤50

≤50

≤50

≤50

≤50

Steep impulse current residual voltage (kV)

≤31.0

≤34.6

≤41.3

≤51.8

≤57.5

Lightning impulse current residual voltage (kV)

≤27

≤31

≤36

≤45

≤50

Operating impulse current residual voltage (kV)

≤23.0

≤25.6

≤30.7

≤35

≤42.5

2mS square wave impulse current endurance (A)

150

75

150

150

100

High current impulse withstand (kA)

65

65

65

65

65

Composite jacket power frequency withstand voltage (kV) for 5 minutes

39

39

39

39

39

 Product Model Description:


Product Structure

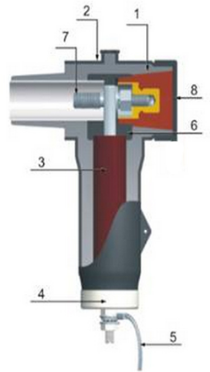

欧式15KV630A插头-EN- European 15kV 630A Plug4631.png

1. Insulation layer

2. Outer shielding layer

3. Lightning arrester core

4. End cover

5. Ground wire

6. Inner shielding layer

7. Double-ended bolts

8. Insulating plug



Standard Packaging:

1. Rear plug lightning arrester

2. Connecting rod

3. Double-ended bolts

4. Mounting wrench

5. Silicone grease

6. Cleaning paper

7. Exhaust strip

8. Installation instructions


Product Dimensions:

欧式15KV630A插头-EN- European 15kV 630A Plug5013.png

European 15kV rear plug-in lightning arrester

European 15kV rear plug-in lightning arrester

Product Description:

The European 15kV rear plug arrester belongs to the European 630A plug series. Rear-plug lightning arresters are connected to the front plug or an additional rear plug to provide over-voltage protection for electrical equipment.

The valve plate inside the surge arrester built into the plug has good non-linearity, which gives the surge arrester low residual voltage, large current-carrying capacity, fast response time, flat steep wave, effective protection against lightning strikes, operational shock and over-voltage, ensuring the safe operation of power transmission and transformation equipment.




Product Image:

欧式15KV630A插头-EN- European 15kV 630A Plug3726.png

Technical Parameters:

Project

YH5WZ-

10/27 parameter

YH5WS-

10/30 parameter

YH5WS-

13/36 parameter

YH5WZ-

17/45 parameter

YH5WS-

17/50 parameter

Nominal voltage (kV)

6

6

10

15

15

Rated voltage (kV)

10

10

13

17

17

Continuous operating voltage (kV)

8.0

8.0

10.4

13.6

13.6

Dc 1mA reference voltage (kV)

≥14.4

≥15.0

≥19.3

≥24

≥25

Leakage current (μA) at 0.75UDC1mA

≤50

≤50

≤50

≤50

≤50

Steep impulse current residual voltage (kV)

≤31.0

≤34.6

≤41.3

≤51.8

≤57.5

Lightning impulse current residual voltage (kV)

≤27

≤31

≤36

≤45

≤50

Operating impulse current residual voltage (kV)

≤23.0

≤25.6

≤30.7

≤35

≤42.5

2mS square wave impulse current endurance (A)

150

75

150

150

100

High current impulse withstand (kA)

65

65

65

65

65

Composite jacket power frequency withstand voltage (kV) for 5 minutes

39

39

39

39

39

 Product Model Description:


Product Structure

欧式15KV630A插头-EN- European 15kV 630A Plug4631.png

1. Insulation layer

2. Outer shielding layer

3. Lightning arrester core

4. End cover

5. Ground wire

6. Inner shielding layer

7. Double-ended bolts

8. Insulating plug



Standard Packaging:

1. Rear plug lightning arrester

2. Connecting rod

3. Double-ended bolts

4. Mounting wrench

5. Silicone grease

6. Cleaning paper

7. Exhaust strip

8. Installation instructions


Product Dimensions:

欧式15KV630A插头-EN- European 15kV 630A Plug5013.png
