European 15kV/630A Rear Plug
Product Description:
European 15kV/630A rear plug is connected to the front plug or another rear plug to provide an extended electrical connection circuit (branch). It cannot be directly connected to the bushing. The tail can be blocked with an insulating plug or extended to another rear plug or rear plug arrester.
Applicable cable cross-sectional area :25-400mm2.
Applicable voltage levels: 6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV

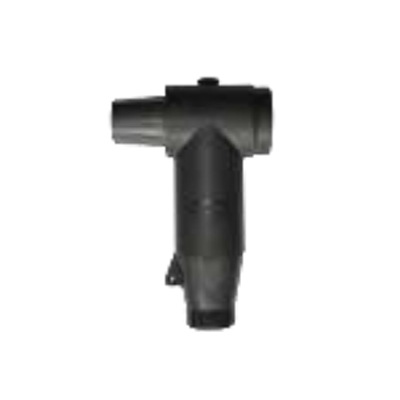

Product Image:
Technical Parameters:
Project
Parameters
Voltage level
15kV
Power frequency withstand voltage (AC) for 5 minutes
39kV
DC withstand voltage (DC) 15 minutes
35kV
Partial discharge
15kV, ≤10pC
Lightning impulse voltage
95kV
Shielding resistor
5000 or less Ω
Applicable cable cross-sectional area
25 to 400mm
Product Model Description:

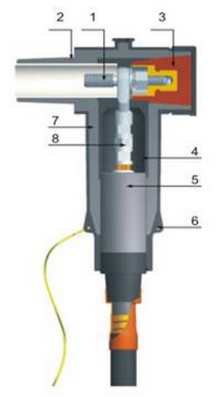

Product Structure:
1. Double-ended bolts
2. Insulation layer
3. Insulating plugs
4. Inner shielding layer
5. Stress body
6. Grounding hole
7. Outer shielding layer
8. Terminal blocks
Standard Packaging:
1. Back plug
2. Terminal blocks
3. Stress body
4. Connecting rods
5. Double-ended bolts
6. Mounting wrench
7. Semiconductive tape
8. PVC tape
9. Sanding strips
10. Silicone grease
11. Cleaning paper
12. Install the ruler
13. Installation Instructions
Product Dimensions:
