European 15kV/630A Front Plug

European 15kV/630A Front Plug

Product Introduction:

European 15kV/630A front plug is used for (cross-linked power cable) incoming and outgoing line terminals of ring main unit switch-gear, bolted to the incoming and outgoing line bushing seats of switch-gear, through-wall bushings of cable branch boxes, and double-way bushings, and is also applicable to box-type substation installations. Provide a fully insulated, fully sealed connection of power cables to switch-gear or cable branch boxes.

  • Applicable cable cross-sectional area :25-400mm2.

  • The product interface complies with the C-type sleeve design in standard EN50180-50181.

  • Applicable voltage levels: 6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV



暂无内容
暂无内容
Product description

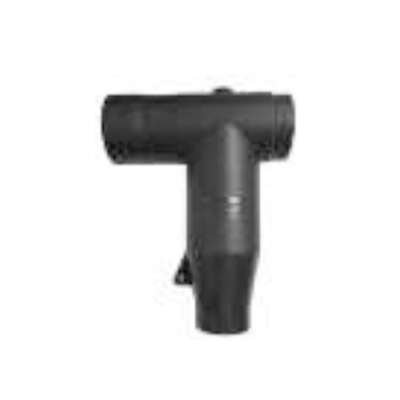

Product Image:



欧式15KV630A插头-EN- European 15kV 630A Plug727.png

Technical Parameters:



Item

Parameters

Voltage level

15kV

Power frequency withstand voltage (AC) for 5 minutes

39kV

DC withstand voltage (DC) 15 minutes

35kV

Partial discharge

15kV, ≤10pC

Lightning impulse voltage

95kV

Shielding resistor

5000 or less Ω

Applicable cable cross-sectional area

25 to 400mm

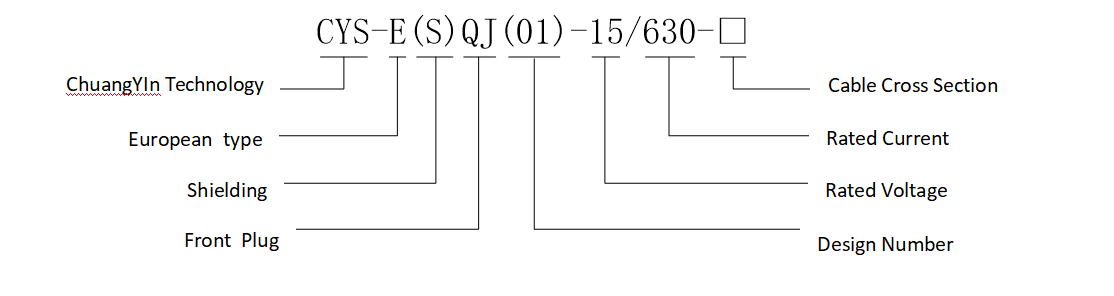

Product model description:

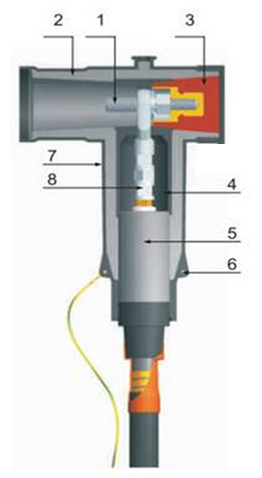

Product Structure:


1. Double-ended bolts

2. Insulation layer

3. Insulating plugs

4. Inner shielding layer

5. Stress body

6. Grounding hole

7. Outer shielding layer

8. Terminal blocks


Standard Packaging:

1. Front plug

2. Terminal blocks

3. Stress body

4. Back cap

5. Insulating plug

6. Double-ended bolts

7. Mounting wrench

8. Semiconductive tape

9. PVC tape

10. Sanding strips

11. Silicone grease

12. Cleaning paper

13. Install the ruler

14. Installation Instructions

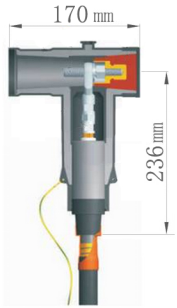

Product Dimensions:

 欧式15KV630A插头-EN- European 15kV 630A Plug1609.png



























European 15kV/630A Front Plug

European 15kV/630A Front Plug

Product Introduction:

European 15kV/630A front plug is used for (cross-linked power cable) incoming and outgoing line terminals of ring main unit switch-gear, bolted to the incoming and outgoing line bushing seats of switch-gear, through-wall bushings of cable branch boxes, and double-way bushings, and is also applicable to box-type substation installations. Provide a fully insulated, fully sealed connection of power cables to switch-gear or cable branch boxes.

  • Applicable cable cross-sectional area :25-400mm2.

  • The product interface complies with the C-type sleeve design in standard EN50180-50181.

  • Applicable voltage levels: 6/10 (12) kV, 6.35/11 (12) kV, 8.7/15 (17.5) kV



Product Image:



欧式15KV630A插头-EN- European 15kV 630A Plug727.png

Technical Parameters:



Item

Parameters

Voltage level

15kV

Power frequency withstand voltage (AC) for 5 minutes

39kV

DC withstand voltage (DC) 15 minutes

35kV

Partial discharge

15kV, ≤10pC

Lightning impulse voltage

95kV

Shielding resistor

5000 or less Ω

Applicable cable cross-sectional area

25 to 400mm


Product model description:




Product Structure:


1. Double-ended bolts

2. Insulation layer

3. Insulating plugs

4. Inner shielding layer

5. Stress body

6. Grounding hole

7. Outer shielding layer

8. Terminal blocks


Standard Packaging:

1. Front plug

2. Terminal blocks

3. Stress body

4. Back cap

5. Insulating plug

6. Double-ended bolts

7. Mounting wrench

8. Semiconductive tape

9. PVC tape

10. Sanding strips

11. Silicone grease

12. Cleaning paper

13. Install the ruler

14. Installation Instructions





Product Dimensions:

 欧式15KV630A插头-EN- European 15kV 630A Plug1609.png
