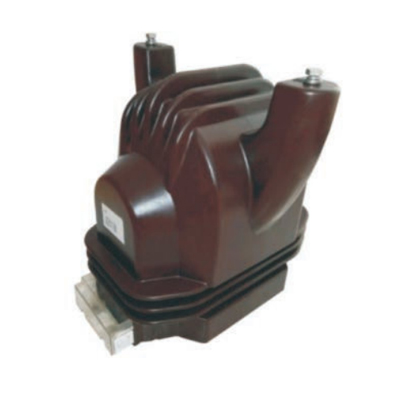

JDZ11-36 Voltage Transformer for AIS（PO-525）

  • Application: 40.5kV Air-Insulated Switchgear

  • Structure Type: Indoor; Single-Phase; Double-Column; Resin-Cast

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1&3 (IEC 61869-1&3)


暂无内容
暂无内容
Product description


JDZ11-36 Voltage Transformer for AIS（PO-525）

  • Application: 40.5kV Air-Insulated Switchgear

  • Structure Type: Indoor; Single-Phase; Double-Column; Resin-Cast

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1&3 (IEC 61869-1&3)


Product Technical Specifications

Rated Primary Voltage (kV)

Rated Secondary Voltage (kV)

Accuracy Class Combination

Rated Output (VA)

Thermal Limit Output (VA)

35

0.1

0.2

15,25

800

0.5

30,50

1

100,150

0.1/0.1

0.2/0.2

15/15

300/300

0.2/0.5

15/30

0.1/0.22

0.2/3P

15/500

800

0.5/3P

25/500

Note: Parameters above are recommended specifications and can be customized upon request.

★Warning: Secondary windings must not be short-circuited during operation.


Product Dimensions & Diagram


JDZ11-36

JDZ11-36 Voltage Transformer for AIS（PO-525）

  • Application: 40.5kV Air-Insulated Switchgear

  • Structure Type: Indoor; Single-Phase; Double-Column; Resin-Cast

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1&3 (IEC 61869-1&3)


JDZ11-36 Voltage Transformer for AIS（PO-525）

  • Application: 40.5kV Air-Insulated Switchgear

  • Structure Type: Indoor; Single-Phase; Double-Column; Resin-Cast

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1&3 (IEC 61869-1&3)


Product Technical Specifications

Rated Primary Voltage (kV)

Rated Secondary Voltage (kV)

Accuracy Class Combination

Rated Output (VA)

Thermal Limit Output (VA)

35

0.1

0.2

15,25

800

0.5

30,50

1

100,150

0.1/0.1

0.2/0.2

15/15

300/300

0.2/0.5

15/30

0.1/0.22

0.2/3P

15/500

800

0.5/3P

25/500

Note: Parameters above are recommended specifications and can be customized upon request.

★Warning: Secondary windings must not be short-circuited during operation.
