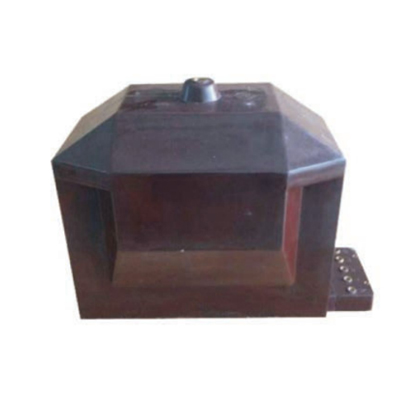

JDZX10-36 Voltage Transformer for AIS（PO-512）
Application: 36kV Air-Insulated Switchgear
Structure Type: Indoor; Single-Phase; Single-Column; Resin-Cast
Rated Frequency: 50Hz, 60Hz
Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)
Standards: GB/T 20840.1&3 (IEC 61869-1&3)
Product Technical Specifications
Rated Primary Voltage (kV)
Rated Secondary Voltage (kV)
Accuracy Class Combination
Rated Output (VA)
Thermal Limit Output (VA)
35/√3
0.1/√3
0.2
15,25
500
0.5
30,50
1
80,100
0.1/√3:0.1/√3
0.2/0.2
15/15
250/250
0.2/0.5
15/30
0.1/√3:0.1/3
0.2/3P
15/50
400
0.5/3P
30/50
Note: Parameters above are recommended specifications and can be customized upon request.
★Warning: Secondary windings must not be short-circuited during operation.

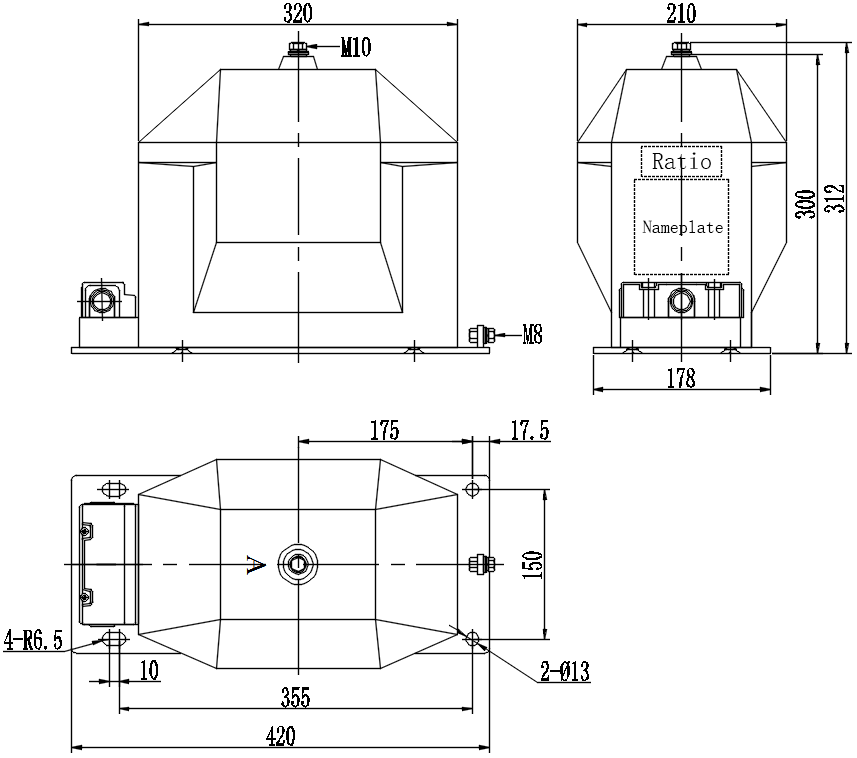

Product Dimensions & Diagram
