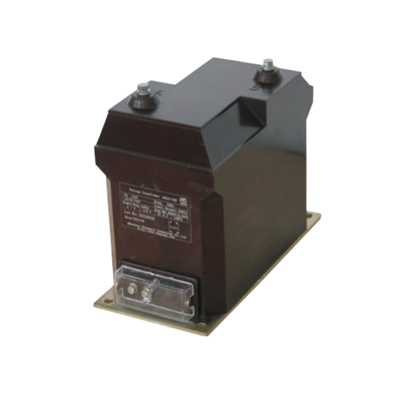

JDZ10-10QC Voltage Transformer for AIS（PO-315）

  • Application: 12kV Air-Insulated Switchgear

  • Structure Type: Indoor; Single-Phase; Double-Column; Resin-Cast

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 12/42/75kV (IEC 12/28/75kV)

  • Standards: GB/T 20840.1&3 (IEC 61869-1&3)


暂无内容
暂无内容
Product description


Product Technical Specifications

Rated Primary Voltage (kV)

Rated Secondary Voltage (kV)

Accuracy Class Combination

Rated Output (VA)

Thermal Limit Output (VA)

10

0.1

0.2

15,25

500

0.5

30,50

1

80,100

0.1/0.1

0.2/0.2

15/15

300/300

0.2/0.5

15/30

0.1/0.22

0.2/3P

15/500

500

0.5/3P

30/500

Note: Parameters above are recommended specifications and can be customized upon request.

★Warning: Secondary windings must not be short-circuited during operation.
