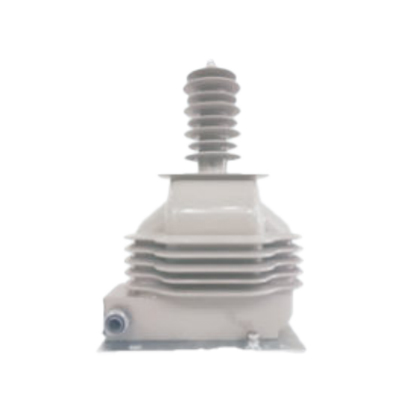

JDZXW5-36 Voltage Transformer for Pole-Mounted Switches（PO-535）

  •  Application: ≤36kV outdoor overhead power systems

  •  Structure Type: Outdoor; Single-phase; Single-column; Resin-encapsulated

  •  Rated Frequency: 50Hz, 60Hz

  •  Rated Insulation Level: 24/65/170kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)


暂无内容
暂无内容
Product description


JDZXW5-36 Voltage Transformer for Pole-Mounted Switches（PO-535）

  •  Application: ≤36kV outdoor overhead power systems

  •  Structure Type: Outdoor; Single-phase; Single-column; Resin-encapsulated

  •  Rated Frequency: 50Hz, 60Hz

  •  Rated Insulation Level: 24/65/170kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)



Product Technical Specifications


Rated Primary Voltage (kV)

Rated Secondary Voltage (kV)

Accuracy Class Combination

Rated Output (VA)

Thermal Limit Output (VA)

33/√3

35/√3

0.1/√3

0.2

20

400



0.5

40




1

80



0.1/√3:0.1/3

0.2/3P

15/100

300



0.5/3P

30/100


Note: Parameters above are recommended specifications and can be customized upon request.

★Warning: Secondary windings must not be short-circuited during operation.

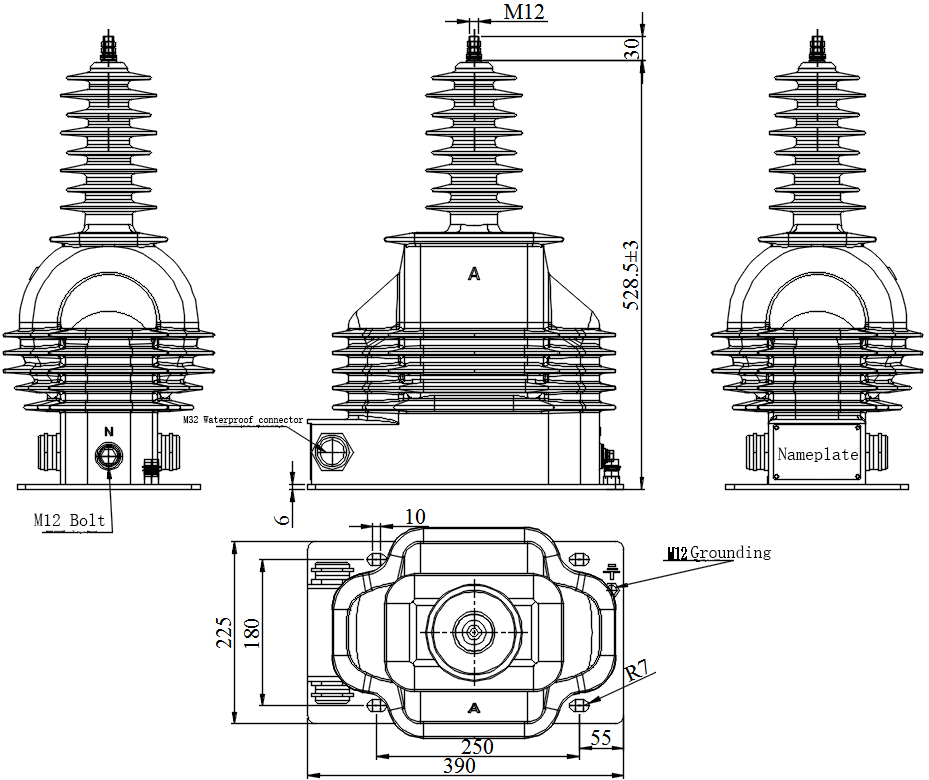

Product Dimensions & Diagram




JDZXW5-36

JDZXW5-36 Voltage Transformer for Pole-Mounted Switches（PO-535）

  •  Application: ≤36kV outdoor overhead power systems

  •  Structure Type: Outdoor; Single-phase; Single-column; Resin-encapsulated

  •  Rated Frequency: 50Hz, 60Hz

  •  Rated Insulation Level: 24/65/170kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)


JDZXW5-36 Voltage Transformer for Pole-Mounted Switches（PO-535）

  •  Application: ≤36kV outdoor overhead power systems

  •  Structure Type: Outdoor; Single-phase; Single-column; Resin-encapsulated

  •  Rated Frequency: 50Hz, 60Hz

  •  Rated Insulation Level: 24/65/170kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)



Product Technical Specifications


Rated Primary Voltage (kV)

Rated Secondary Voltage (kV)

Accuracy Class Combination

Rated Output (VA)

Thermal Limit Output (VA)

33/√3

35/√3

0.1/√3

0.2

20

400



0.5

40




1

80



0.1/√3:0.1/3

0.2/3P

15/100

300



0.5/3P

30/100


Note: Parameters above are recommended specifications and can be customized upon request.

★Warning: Secondary windings must not be short-circuited during operation.



Product Dimensions & Diagram
