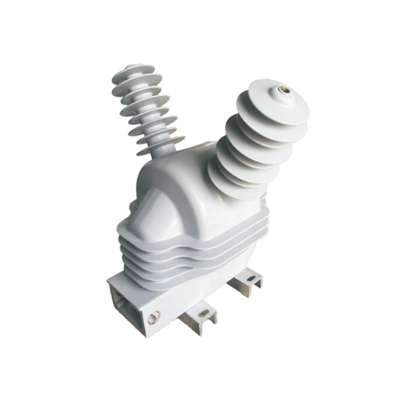

JDZW1-36 Voltage Transformer for Pole-Mounted Switches（PO-538）

  • Application: ≤36kV outdoor overhead power systems

  • Structure Type: Outdoor; Single-phase; Double-column; Resin-encapsulated

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 24/65/170kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)


暂无内容
暂无内容
Product description


JDZW1-36 Voltage Transformer for Pole-Mounted Switches（PO-538）

  • Application: ≤36kV outdoor overhead power systems

  • Structure Type: Outdoor; Single-phase; Double-column; Resin-encapsulated

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 24/65/170kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)


Product Technical Specifications

Rated Primary Voltage (kV)

Rated Secondary Voltage (kV)

Accuracy Class Combination

Rated Output (VA)

Thermal Limit Output (VA)

33

35

0.1

0.2

15

300

0.5

30

1

50

0.22

3

300

400

0.1/0.22

0.5/3

30/300

200/400

Note: Parameters above are recommended specifications and can be customized upon request.

★Warning: Secondary windings must not be short-circuited during operation.
