JDZW5-36

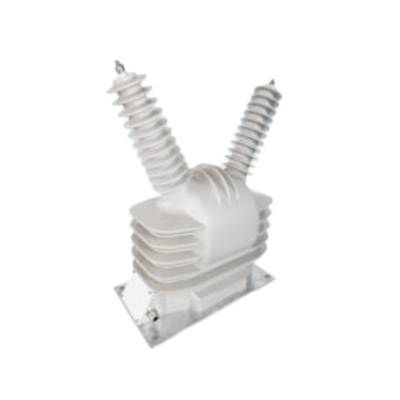

JDZW5-36 Voltage Transformer for Pole-Mounted Switches（PO-531）

  • Application: ≤40.5kV outdoor overhead power systems

  • Structure Type: Outdoor; Single-phase; Double-column; Resin-cast

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)


暂无内容
暂无内容
Product description


JDZW5-36 Voltage Transformer for Pole-Mounted Switches（PO-531）

  • Application: ≤40.5kV outdoor overhead power systems

  • Structure Type: Outdoor; Single-phase; Double-column; Resin-cast

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)


Product Technical Specifications

Rated Primary Voltage (kV)

Rated Secondary Voltage (kV)

Accuracy Class Combination

Rated Output (VA)

Thermal Limit Output (VA)

35

0.1

0.2

30

500

0.5

50

1

150

0.22

3

500

600

0.1/0.1

0.2/0.2

15/15

300/300

0.2/0.5

15/20

0.1/0.22

0.2/3P

20/300

500

0.5/3P

50/300

Note: Parameters above are recommended specifications and can be customized upon request.

★Warning: Secondary windings must not be short-circuited during operation.

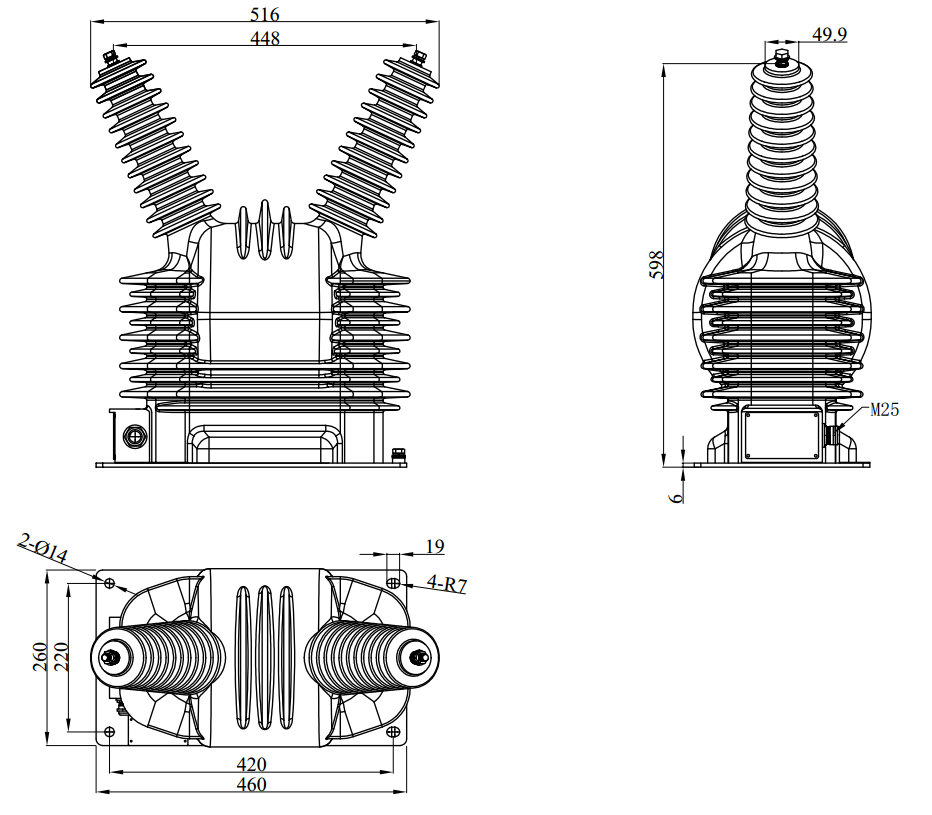

Product Dimensions & Diagram



JDZW5-36

JDZW5-36 Voltage Transformer for Pole-Mounted Switches（PO-531）

  • Application: ≤40.5kV outdoor overhead power systems

  • Structure Type: Outdoor; Single-phase; Double-column; Resin-cast

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)


JDZW5-36 Voltage Transformer for Pole-Mounted Switches（PO-531）

  • Application: ≤40.5kV outdoor overhead power systems

  • Structure Type: Outdoor; Single-phase; Double-column; Resin-cast

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)

  • Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)


Product Technical Specifications

Rated Primary Voltage (kV)

Rated Secondary Voltage (kV)

Accuracy Class Combination

Rated Output (VA)

Thermal Limit Output (VA)

35

0.1

0.2

30

500

0.5

50

1

150

0.22

3

500

600

0.1/0.1

0.2/0.2

15/15

300/300

0.2/0.5

15/20

0.1/0.22

0.2/3P

20/300

500

0.5/3P

50/300

Note: Parameters above are recommended specifications and can be customized upon request.

★Warning: Secondary windings must not be short-circuited during operation.


Product Dimensions & Diagram
