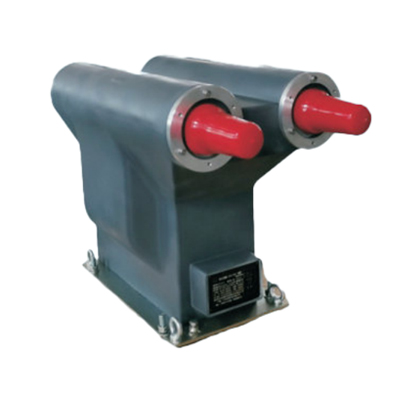

JDZ16-35RPC Voltage Transformer for GIS（PO-524）
Application: ≤40.5kV Gas-Insulated Switchgear
Structure Type: Indoor; Single-phase (phase-to-phase); Resin-encapsulated; C-type bushings; Built-in fuse; Fully shielded
Rated Frequency: 50Hz, 60Hz
Rated Insulation Level: 40.5/95/200kV (IEC 36/70/170kV)
Standards: GB/T 20840.1&3 (IEC 61869-1&3)
Product Technical Specifications
Rated Primary Voltage (kV)
Rated Secondary Voltage (kV)
Accuracy Class Combination
Rated Output (VA)
Thermal Limit Output (VA)
35
0.1
0.2
50
600
0.5
80
1
100
0.1/0.1
0.2/0.2
25/25
400/400
0.2/0.5
20/30
0.22
3P
1000
0.1/0.22
0.5/3P
50/1000
300/1000
Note: Parameters above are recommended specifications and can be customized upon request.
★Warning: Secondary windings must not be short-circuited during operation.

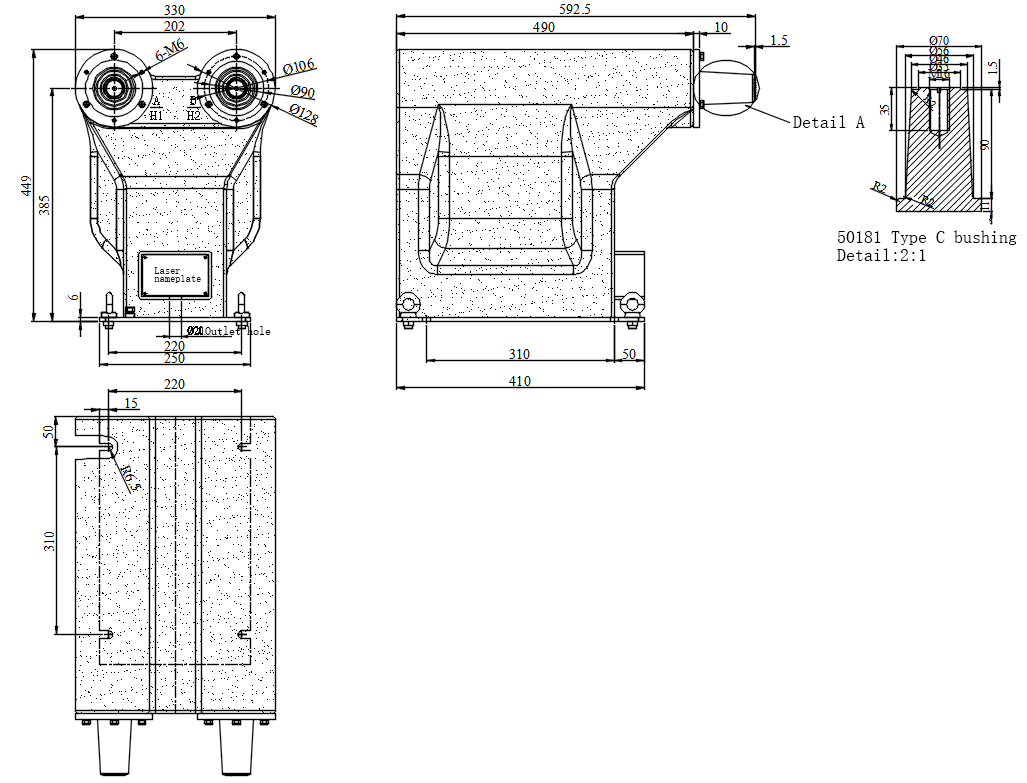

Product Dimensions & Diagram
