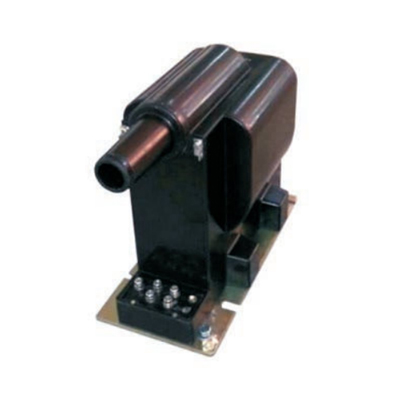

JDZX18-10R Voltage Transformer for GIS（PO-349）
Application: 12kV Gas-Insulated Switchgear
Structure Type: Indoor; Single-phase (phase-to-ground); Resin-encapsulated; Built-in fuse; Cable plug connection
Rated Frequency: 50Hz, 60Hz
Rated Insulation Level: 12/42/75kV (IEC 12/28/75kV)
Standards: GB/T 20840.1 & 3 (IEC 61869-1 & 3)
Product Technical Specifications
Rated Primary Voltage (kV)
Rated Secondary Voltage (kV)
Accuracy Class Combination
Rated Output (VA)
Thermal Limit Output (VA)
10/√3
0.1/√3
0.2
30
300
0.5
50
1
80
0.1/√3:0.1/√3
0.2/0.2
15/15
150/150
0.2/0.5
15/30
0.1/√3:0.1/3
0.2/3P
15/50
200
0.5/3P
30/50
Note: Parameters above are recommended specifications and can be customized upon request.
★Warning: Secondary windings must not be short-circuited during operation.

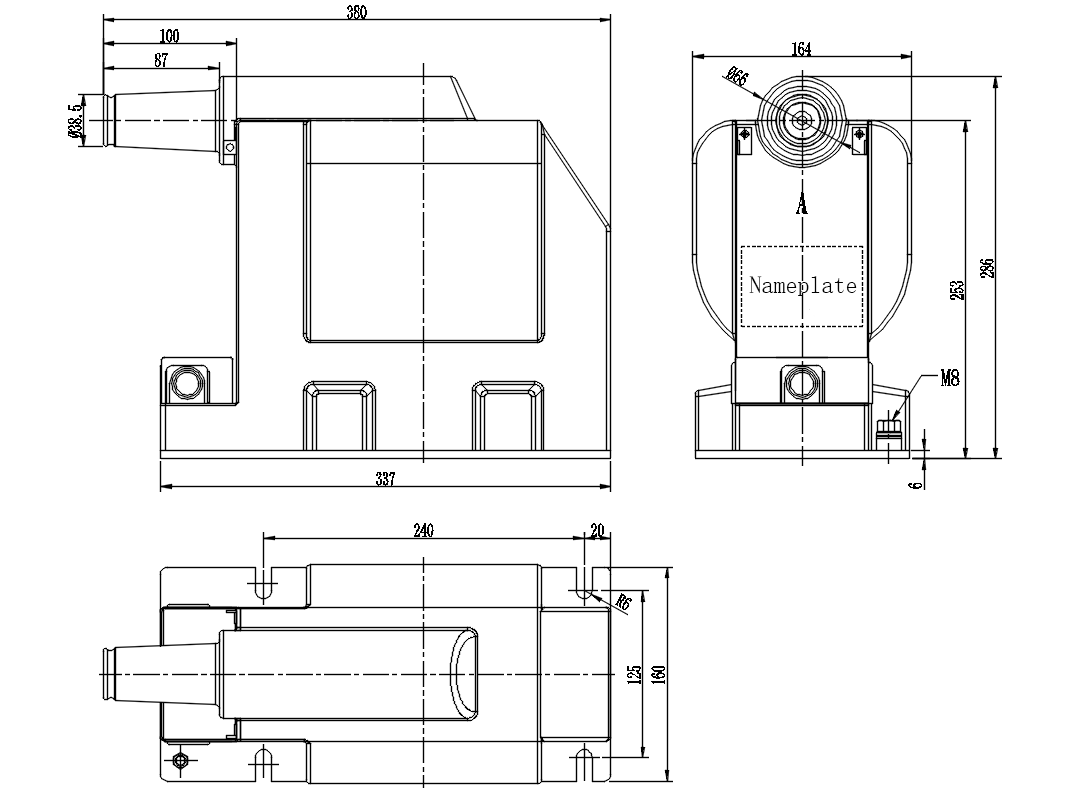

Product Dimensions & Diagram
