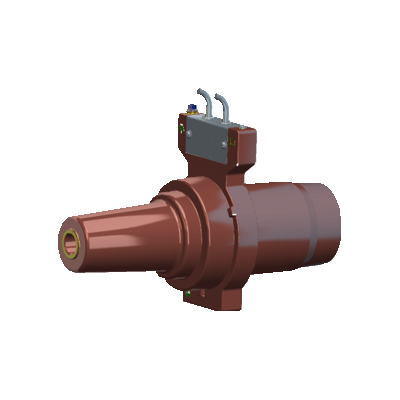

CYS-LPYT2-36 Current-Voltage Combined Sensor（PO-9709）

Application: ≤40.5kV switchgear

Structure Type: Indoor, Single-phase, Resin-encapsulated C-type bushing with external cone for cable plug

Rated Frequency: 50Hz, 60Hz

Rated Insulation Level: 40.5/95/185kV (IEC 36/70/170kV)

Standards: GB/T 20840.6, GB/T 20840.7&8 (IEC 61869-6&10&11)


暂无内容
暂无内容
Product description


Product Specifications

NO.



Rated Values



Parameters

ECT（LPCT)

EVT（LPVT)

1

Rated Primary Voltage

36kV

33/√3kV

2

Rated Primary Current

40~800A

/

3

Rated Secondary Voltage

225mV

3.25/√3V

4

Accuracy Class

0.5,1,5P,10P

1，3, 0.5P, 1P,3P,6P

5

Rated Load

≥10kΩ

1MΩ

6

Rated Power Frequency Withstand Voltage

95kV(IEC70kV)

95kV(IEC70kV)

7

Rated Short-Time Thermal Current

80(100)×Ipr

/

8

Partial Discharge Level

≤20pC

9

Torque

Max 30N·m

10

Connection Method

Aviation Connector

11

Connection Cable

Shielded Twisted Pair Cable L=3 meters (length customizable upon request)

Product Dimensions & Photo




CYS-LPYT2-36

CYS-LPYT2-36 Current-Voltage Combined Sensor（PO-9709）

Application: ≤40.5kV switchgear

Structure Type: Indoor, Single-phase, Resin-encapsulated C-type bushing with external cone for cable plug

Rated Frequency: 50Hz, 60Hz

Rated Insulation Level: 40.5/95/185kV (IEC 36/70/170kV)

Standards: GB/T 20840.6, GB/T 20840.7&8 (IEC 61869-6&10&11)


Product Specifications

NO.



Rated Values



Parameters

ECT（LPCT)

EVT（LPVT)

1

Rated Primary Voltage

36kV

33/√3kV

2

Rated Primary Current

40~800A

/

3

Rated Secondary Voltage

225mV

3.25/√3V

4

Accuracy Class

0.5,1,5P,10P

1，3, 0.5P, 1P,3P,6P

5

Rated Load

≥10kΩ

1MΩ

6

Rated Power Frequency Withstand Voltage

95kV(IEC70kV)

95kV(IEC70kV)

7

Rated Short-Time Thermal Current

80(100)×Ipr

/

8

Partial Discharge Level

≤20pC

9

Torque

Max 30N·m

10

Connection Method

Aviation Connector

11

Connection Cable

Shielded Twisted Pair Cable L=3 meters (length customizable upon request)

Product Dimensions & Photo
