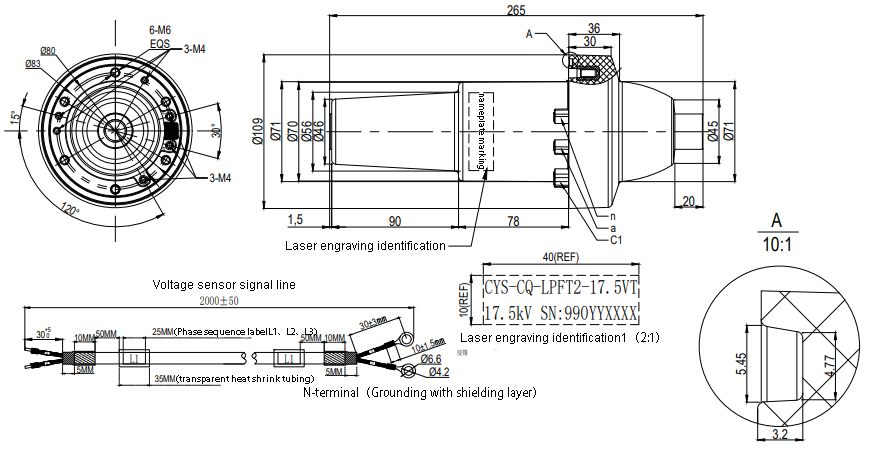

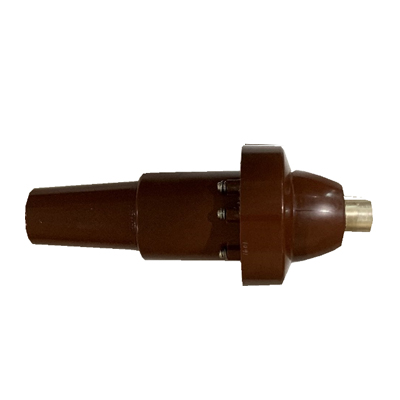

CYS-LPFT2-17.5

1

Maximum Equipment Voltage

17.5kV

2

Rated Primary Voltage

10/√3kV, 13.8/√3kV

3

Rated Secondary Voltage

3.25/√3V, 6.5/3V

4

Accuracy Class

1,3, 1P,3P,6P

5

Rated Load

1MΩ, 2MΩ,10MΩ,

6

Rated Frequency

50Hz, 60Hz

7

Rated Voltage Factor

1.2 times/ Continuous, 1.5 times/30s, 1.9 times/8h

8

Rated Power Frequency Withstand Voltage

55 kV (IEC 38kV)/1 minute

9

Rated Impulse Withstand Voltage (Peak)

105kV (IEC 95kV)

10

Partial Discharge Level

1.2Um/√3 ≤ 20pC

11

Live Indicator Port

VPI port optional

12

Connection Type

RJ45 connector, open round terminal

13

Connection Cable

Shielded twisted pair cable L=2m (length customizable upon request)
