CY-ECTDR80 Current Sensor（PO-9132）
Application: ≤40.5kV
Structure Type: Indoor Single-phase Open-type
Rated Frequency: 50Hz, 60Hz
Rated Insulation Level: 0.66/3/-kV (IEC 0.72/3/-kV)
Standards: GB/T 20840.6, GB/T 20840.8 (IEC 61869-6&10)
Product Specifications
NO.
Rated Value
Parameters
1
Rated Primary Current
300A (Ext. 210%)
2
Rated Secondary Voltage
225mV
3
Accuracy Class
0.5, 1, 5P, 10P
4
Rated Load
≥10kΩ
5
Rated Frequency
50Hz, 60Hz
6
Rated Power Frequency Withstand Voltage
3kV (IEC 3kV)/1 minute
7
Rated Short-Time Thermal Current
25kA/1s
8
Connection Cable
Shielded twisted pair cable L=3.7m (length customizable upon request)

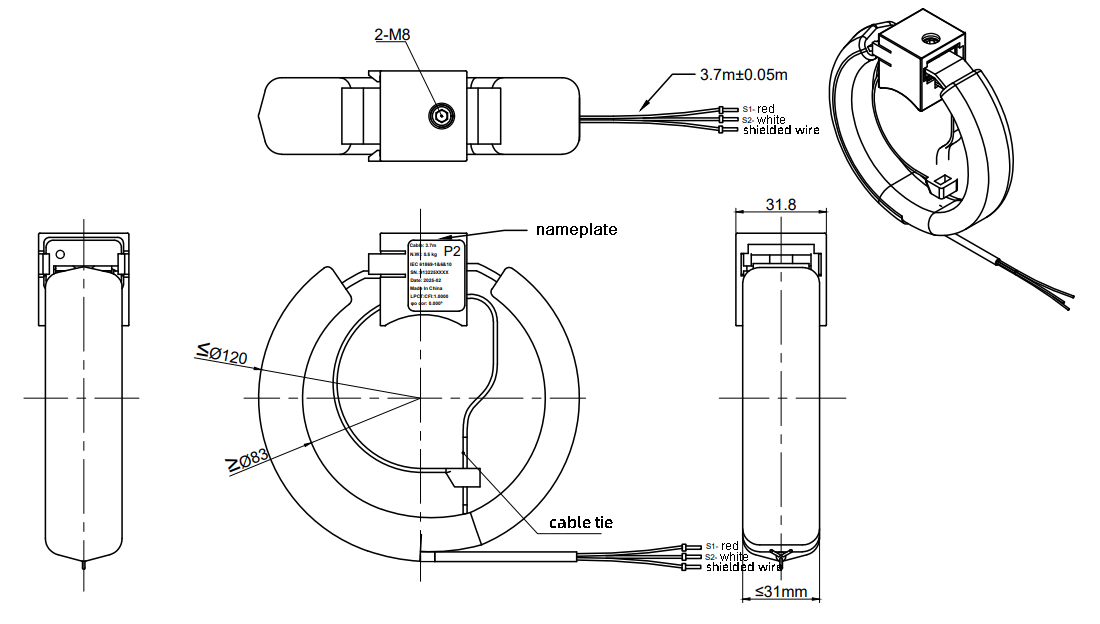

Product Dimensions & Photo
