CY-ECTDT6

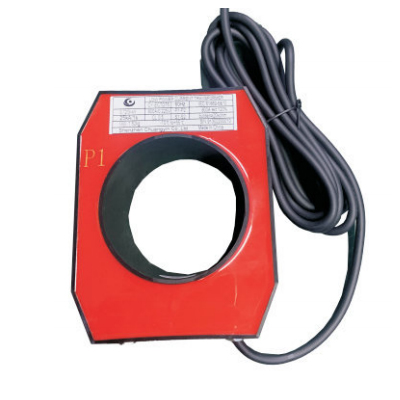

CY-ECTDT6 Electronic Current Transformer（PO-9130）

  • Applicable to: ≤40.5kV GIS

  • Structure Type: Indoor;Single-phase;Plastic-encapsulated resin;Busbar through-core type

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 0.66/3/-kV (IEC 0.72/3/-kV)

  • Standards: GB/T 20840.6, GB/T 20840.8 (IEC 61869-6&10)


暂无内容
暂无内容
Product description


Product Technical Specifications

NO.

Rated Value

Specifications

1

Rated Primary Current

10~1500A

2

Rated Secondary Voltage

1V、225mV

3

Accuracy Class

0.2(S),0.5(S),1,5P,10P

4

Rated Load

≥20kΩ

5

Rated Frequency

50Hz,60Hz

6

Rated Power Frequency Withstand Voltage

3kV

7

Rated Short-Time Thermal Current

80×Ipr

8

Connection Cable

Shielded twisted pair cable L=3 meters (length customizable upon request)

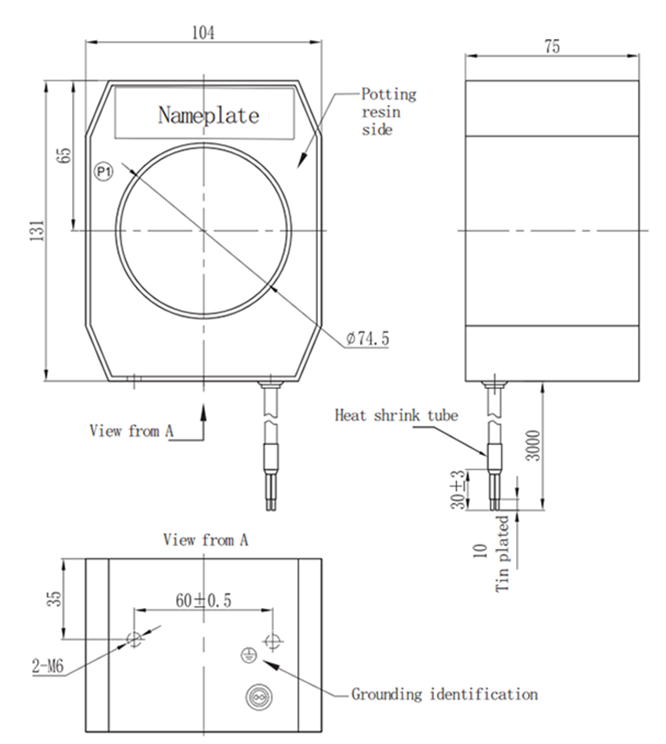

Product Dimensions & Diagram



CY-ECTDT6

CY-ECTDT6 Electronic Current Transformer（PO-9130）

  • Applicable to: ≤40.5kV GIS

  • Structure Type: Indoor;Single-phase;Plastic-encapsulated resin;Busbar through-core type

  • Rated Frequency: 50Hz, 60Hz

  • Rated Insulation Level: 0.66/3/-kV (IEC 0.72/3/-kV)

  • Standards: GB/T 20840.6, GB/T 20840.8 (IEC 61869-6&10)


Product Technical Specifications

NO.

Rated Value

Specifications

1

Rated Primary Current

10~1500A

2

Rated Secondary Voltage

1V、225mV

3

Accuracy Class

0.2(S),0.5(S),1,5P,10P

4

Rated Load

≥20kΩ

5

Rated Frequency

50Hz,60Hz

6

Rated Power Frequency Withstand Voltage

3kV

7

Rated Short-Time Thermal Current

80×Ipr

8

Connection Cable

Shielded twisted pair cable L=3 meters (length customizable upon request)


Product Dimensions & Diagram



Product description
