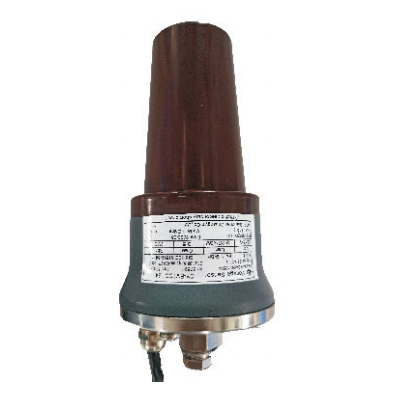

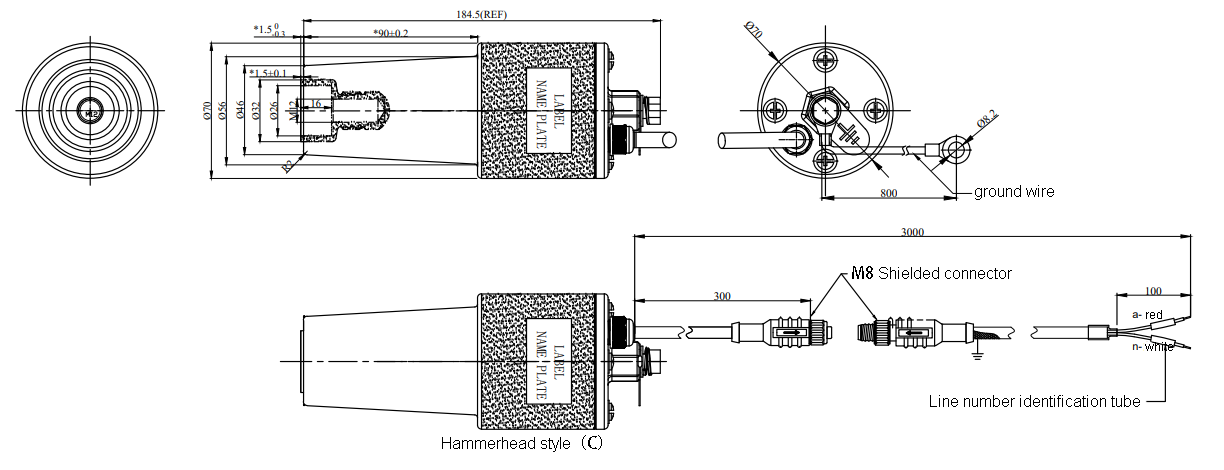

CY-EVTDC1-36C

1

Maximum Equipment Voltage

40.5kV (IEC 36kV)

2

Rated Primary Voltage

35/√3kV, 33/√3kV

3

Rated Secondary Voltage

3.25/√3V, 6.5/3V

4

Accuracy Class

0.5, 1, 3, 0.5P, 1P, 3P,6P

5

Rated Load

1MΩ, 2MΩ, 10MΩ, 200KΩ\50pF

6

Rated Frequency

50Hz, 60Hz

7

Rated Voltage Factor

1.2 times/continuous, 1.5 times/30s, 1.9 times/8h

8

Rated Power Frequency Withstand Voltage

95 kV (IEC 70kV)/1 minute

9

Rated Impulse Withstand Voltage (Peak)

185kV (IEC 170kV)

10

Partial Discharge Level

1.2μm/√3 ≤ 20pC

11

Torque

Max 30N·m

12

Connection Type

Shielded sensor connector

13

Connection Cable

Shielded twisted pair cable L=3m (custom lengths available upon request)
