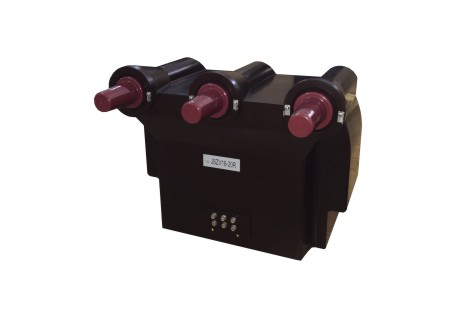

JSZY18-24RJ

JSZY18-24RJ voltage transformer, is fully enclosed casting insulation structure, the primary winding, secondary winding and the annular core all coating in the epoxy resin casting, The product adds elbow type plug part, improving the filth and moisture resistance, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest   voltage for equipment 24 kV.

暂无内容
暂无内容
Product description


Main technical parameter

1. Rated primary voltage： 20/√3 KV or 22/√3 KV

2. Rated secondary voltage：100/√3, 100/√3/100/√3 100/√3/220

3. Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V

4. Burden power factor: cosΦ=0.8(lagging)

5. Standards: IEC60044-2.2003 or IEC61869-1&3

Other technical parameters pls see as follow:

Type

Rated primary

voltage (kV)

Rated secondary voltage (kV)

Accuracy classes combination

Rated output

 (VA)

Thermal limiting current

(VA)

Rated insulation level(kV)

JSZY18-24RJ

20/√3

22/√3

0.1/√3

0.2

40

2000



24/50/125

0.5

80

1

100

0.1/√3/0.1/√3

0.2/0.2

20/20

500/500

0.2/0.5

20/30

0.1/√3/0.22

0.2/6P（3P）

50/800

800/2000

0.5/6P（3P）

50/800

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

Outline drawing




JSZY18-24RJ

JSZY18-24RJ voltage transformer, is fully enclosed casting insulation structure, the primary winding, secondary winding and the annular core all coating in the epoxy resin casting, The product adds elbow type plug part, improving the filth and moisture resistance, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest   voltage for equipment 24 kV.

Main technical parameter

1. Rated primary voltage： 20/√3 KV or 22/√3 KV

2. Rated secondary voltage：100/√3, 100/√3/100/√3 100/√3/220

3. Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V

4. Burden power factor: cosΦ=0.8(lagging)

5. Standards: IEC60044-2.2003 or IEC61869-1&3

Other technical parameters pls see as follow:

Type

Rated primary

voltage (kV)

Rated secondary voltage (kV)

Accuracy classes combination

Rated output

 (VA)

Thermal limiting current

(VA)

Rated insulation level(kV)

JSZY18-24RJ

20/√3

22/√3

0.1/√3

0.2

40

2000



24/50/125

0.5

80

1

100

0.1/√3/0.1/√3

0.2/0.2

20/20

500/500

0.2/0.5

20/30

0.1/√3/0.22

0.2/6P（3P）

50/800

800/2000

0.5/6P（3P）

50/800

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

Outline drawing
