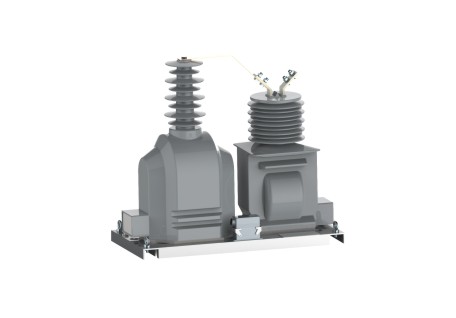

Technical Data:
1.Outdoor use
2.Cast-resin insulated
3.Frequency 50Hz or 60Hz
4.Standards: IEC 60044-2 IEC 61869-1&3
Parameters:
No. | Items | Unit | Index | Remarks |
1 | Highest Voltage of Equipment | kV | 40.5, 36 |
|
2 | BIL | kV | GB:40.5/95/200, IEC36/70/170 |
|
3 | Rated Primary Voltage | V | 35400/√3 |
|
4 | Rated Secondary Voltage | V | 100/√3, 100, 120 |
|
5 | Rated Primary Current | A | 5-1000 |
|
6 | Rated Secondary Current | A | 1 or 5 |
|
Remarks | Standards: GB20840.1-2010 GB20840.3-2013 GB20840.2-2014 IEC61869-1:2007 IEC61869-2:2012 IEC61869-3:2011 |
II. Application:
Use for highest voltage for equipments no more than 40.5kV, for current/voltage measurement in power system.
III. Features:
3.1 Use high properties iron core to meet high accuracy, big burden etc.
3.2 Use epoxy resin cast insulation structure to improve anti-pollution, anti-moisture etc.
3.3 Use full-sealed cast insulation type
3.4 Outdoor installation
IV. Technical Parameters:
Model | Voltage Ratio(kV) | Accuracy Class | Rated Burden(VA) | Current Ratio(A) | Accuracy Class | Rated Burden(VA) |
JLDZXW1-36 | 35.4/√3/0.12 35.4/√3/0.1 35.4/√3/0.1/√3 | 0.2 0.5 | 25 50 | 20-40/5 | 0.2S 0.5S | 12.5 |
50-100/5 |
… |
400-800 |
500-1000 |
Outline Drawing:
