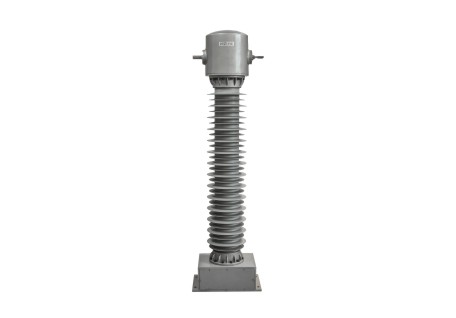

CYECT1-110D

Technical parameter
1. Rated primary voltage : 110 kV
2. Rated primary current : 50-3150A
3. Rated digital output : 0x2D41(measure)   0x01CF(protection)
4. Accuracy for measuring winding : 0.2
5. Accuracy for protection winding : 5TPE/5P20-50
6. Rated insulation level : 126/200/450kV
7. Rated short time thermal current : 50-200: 150Ipr, 300-2000A :31.5kA/1S
8. Rated dynamic current：50-200A : 375Ipr, 300-2000A :80kA
9. Ambient temperature : -25℃-50℃
10. Ambient humidity : ≤RH95%(25℃ )
11. Altitude : ≤ 2000m( Can devise according customer’s requirement)

12. Installation site : outdoor

Outline drawing

The products accord with standard IEC60044-8 , IEC61850-9 ,GB/T20840.8-2007, digital output can expediently match with electric instrument, digital measure and protective equipment, and can meet customer’s other special requirement.

Technical parameter
1. Rated primary voltage : 110 kV
2. Rated primary current : 50-3150A
3. Rated digital output : 0x2D41(measure)   0x01CF(protection)
4. Accuracy for measuring winding : 0.2
5. Accuracy for protection winding : 5TPE/5P20-50
6. Rated insulation level : 126/200/450kV
7. Rated short time thermal current : 50-200: 150Ipr, 300-2000A :31.5kA/1S
8. Rated dynamic current：50-200A : 375Ipr, 300-2000A :80kA
9. Ambient temperature : -25℃-50℃
10. Ambient humidity : ≤RH95%(25℃ )
11. Altitude : ≤ 2000m( Can devise according customer’s requirement)

12. Installation site : outdoor

Outline drawing
