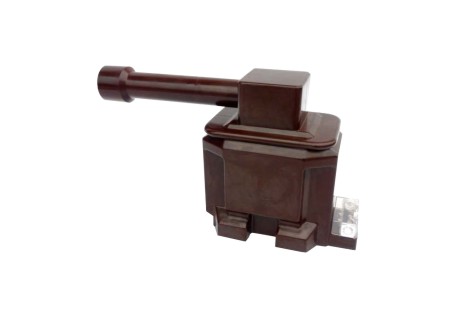

JDZX12-24R
VOLTAGE TRANSFORMER
24kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and fully enclosed construction, is used indoor for measuring , electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5kV (Up to 24 kV) . The product has the feature of high reliability, low magnetism of core, large creep distance of external insulation and maintenance free etc.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
