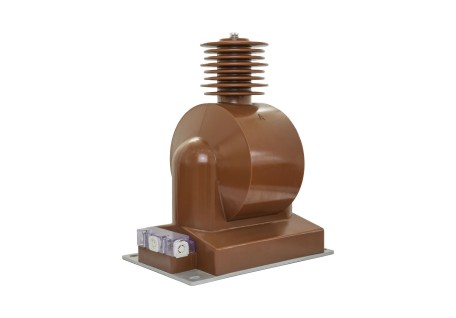

JDZX9-36、JDZX9-36J
VOLTAGE TRANSFORMER
□ 36kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and single pole insulated VT, is widely used indoor for measuring , electric energy and protective relaying in the isolated neutral system with the frequency 50Hz or 60Hz and highest voltage for equipment 36 kV (Up to 40.5kV), The transformers can be produced according to the standardsIEC60044-2:2003.
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
