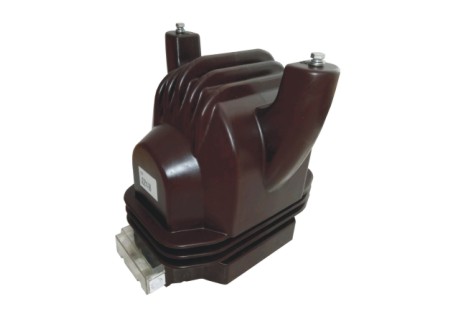

VOLTAGE TRANSFORMER

□ 36kV Indoor Single-Phase Epoxy Resin Type


JDZ11-36 voltage transformer, is fully enclosed casting insulation structure,the primary winding, secondary winding and the annular core all coating in theepoxy resin casting, improve the filth and moisture resistance. The model addsthe umbrella skin product desigh and increase external insulation creepagedistance, is widely used indoor for measuring current, electric energy andprotective relaying in the isolated neutral system with the frequency 50-60Hzand highest voltage for equipment 40.5 kV


Technical Data

1. Rated primary voltage： 33 kV or 34.5 kV or 35kV

2. Rated secondary voltage：100V,100/100V,100/220V

3. Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V

4. Burden power factor: cosΦ=0.8(lagging)

5. Standards: IEC60044-2.2003 or IEC61869-1&


暂无内容
暂无内容
Product description


Specification


Type

Rated primary

voltage (kV)

Rated secondary voltage (kV)

Accuracy classes combination

Rated output

 (VA)

Thermal limiting current

(VA)

Rated insulation level(kV)

JDZ11-36

33

34.5

35

0.1

0.11

0.2

25

800

36/70/170

40.5/95/200

0.5

50

1

150

0.1/0.1

0.11/0.11

0.2/0.2

15/50

300/300

0.2/0.5

30/50

0.1/0.22

0.11/0.22

0.2/6P(3P)

15/500

800

0.5/6P(3P)

25/500



Outline
