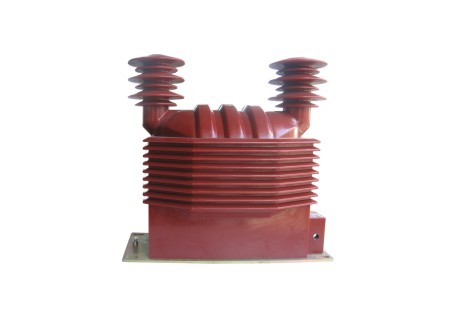

JDZ-36
VOLTAGE TRANSFORMER
□ 36kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and double pole insulated VT, is widely used for measuring , electric energy and protective relaying in the isolated neutral system with the frequency 50Hz or 60Hz and insulation voltage 36 kV (Up to 40.5kV).
The iron core adopts advanced cold-rolled silicon steel sheet. Highvoltage outgoing line of primary winding was fetched out from top ofthe product; outgoing line of secondary winding was fetched outfrom transverse side of the product
Technical Data
1、Installation site indoor
2、Rated frequency 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
