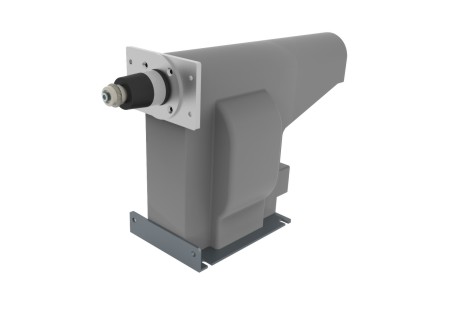

Main technical parameter
1. Rated primary voltage： 35/√3
2. Rated secondary voltage：100/√3 V，100/√3/100/3 V
3. Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V
4. Burden power factor: cosΦ=0.8(lagging)
5. Standards: IEC60044-2.2003 or IEC61869-1&3
Other technical parameters pls see as follow:
Type | Rated primary voltage (kV) | Rated secondary voltage (kV) | Accuracy classes combination | Rated output (VA) | Thermal limiting current (VA) | Rated insulation level(kV) |
JDZX16-36RPC | 33/√3 34.5/√3 35/√3 | 0.1/√3 | 0.2 | 30 | 300 | 36/70/170 40.5/95/200 |
0.5 | 50 |
1 | 80 |
0.1/√3/0.1/3 | 0.2/6P（3P） | 15/50 | 300 |
0.5/6P（3P） | 30/50 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs
Outline drawing
