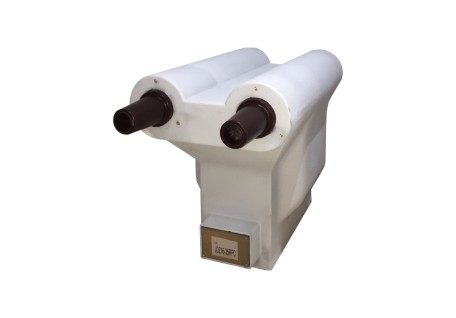

Main technical parameter
1. Rated primary voltage：33 kV or 34.5 kV or 35kV
2. Rated secondary voltage：100V,100/100V,100/220V
3. Rated voltage of residual voltage windings：100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V
4. Burden power factor: cosΦ=0.8(lagging)
5. Standards: IEC60044-2.2003 or IEC61869-1&3
Other technical parameters pls see as follow:
Type | Rated primary voltage (kV) | Rated secondary voltage (kV) | Accuracy classes combination | Rated output (VA) | Thermal limiting current (VA) | Rated insulation level(kV) |
JDZ16-36RPC | 33 34.5 35 | 0.1 | 0.2 | 40 | 800 | 36/70/170 40.5/95/200 |
0.5 | 80 |
1 | 100 |
0.1/0.1 | 0.2/0.2 | 20/20 | 300/300 |
0.2/0.5 | 20/30 |
0.1/0.22 | 0.2/6P(3P) | 50/500 | 300/800 |
0.5/6P(3P) | 50/500 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Outline drawing
