JLSZXW1-36

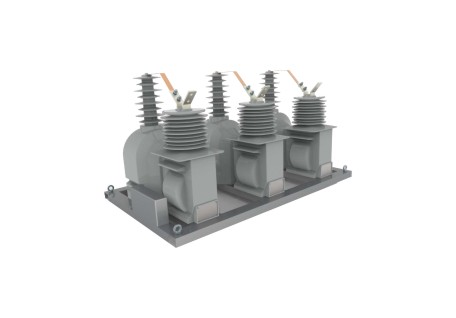

OUTDOOR COMBINED TRANSFORMER JLSZXW1-36

This three phase combined CT&VT consists of three semi-insulation VTs and three CTs. VT connected with CT terminal P1, CT series connected with phase A(B,C), secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 40.5kV for current/voltage measurement in power system.

Technical Data:
1.Installation site: outdoor
2.Rated Frequency: 50/60Hz
3.Burden power factor: Cosφ=0.8（lagging）

4.Technical standard accords with IEC 60044-1＆2,IEC 61869-1 & 2 & 3


暂无内容
暂无内容
Product description


Main technical parameter:

Rated frequency: 50/60Hz:
Rated insulation level: 36/70/170kV (IEC) or 40.55/95/200kV (GB)


Voltage Ratio

(kV)

Accuracy Class

Rated Burden (VA)

Current Ratio

(A)

Accuracy Class

Rated Burden

(VA)

66000/√3/0.12

66000/√3/0.1

66000/√3/0.1/√3

0.2

0.5

15

30

5-10/5

0.2S

0.5S

12.5

10-20/5

15-30/5

…

500-1000




Outline drawing:

Wiring Diagram:
